Coupeuse Laveuse Haute définition

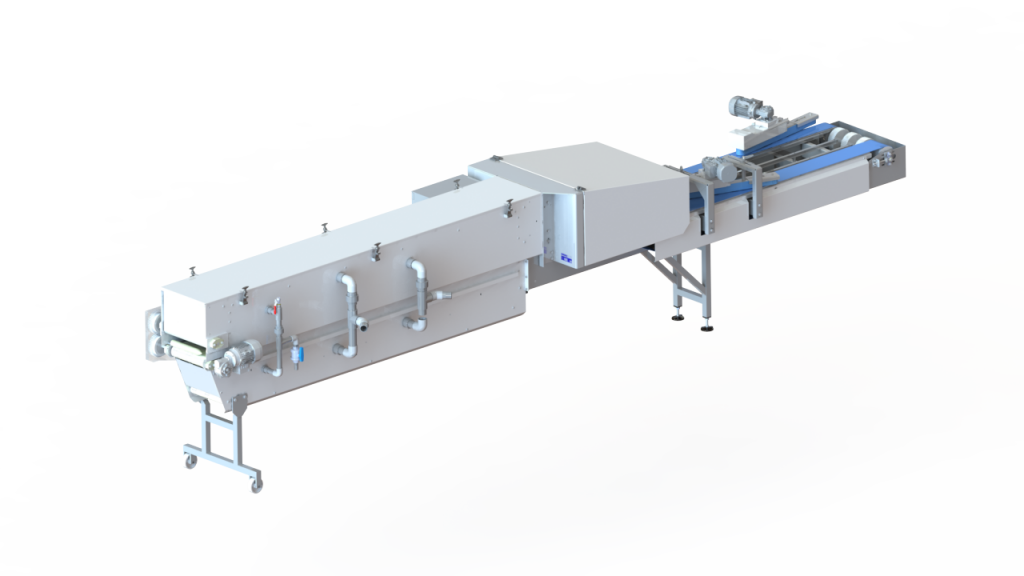

CUTTING/WASHING MACHINE CLA2000 HD

A top-of-the-range model for flawless washing

Options: Input tray, recycling unit

FEATURES :

  • Ultra-effective washing.
  • 2 high-flow and pressure pumps.
  • Large recycling unit.
  • Double washing ramp: high and low.
  • 48 sprayers with flat jet nozzles.
  • Double stop.

OUTPUT :

  • With 2 or 3 operators at input: up to 1500 kg/h with electronic speed control.

OPERATION :

  • Smooth input conveyor belt.
  • Stalk and tip alignment.
  • The double stop system can cut all the asparagus.
  • Double stainless steel mesh belt with slots to hold the asparagus in the washing tunnel.
  • Easy-to-adjust cutting length:
    up to 27 cm.

MAINTENANCE :

  • The machine is made entirely from stainless steel.
  • Low maintenance: simply grease the
    bearings.
  • Clean water wash.
  • The saw blade should be changed according to wear.

TECHNICAL FEATURES :

  • Power supply: 220 V/380 V
  • Total electric power with 2 pumps: 1 kW
  • Water consumption: closed circuit.

SIZE :

  • Length: 5.80 mm
  • Width: 1.80 m
  • Height: 1.25 m
