EP2000 – 1 Belt

Category : Non classé

PDF

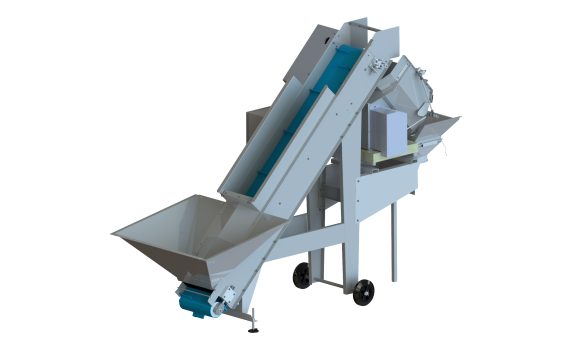

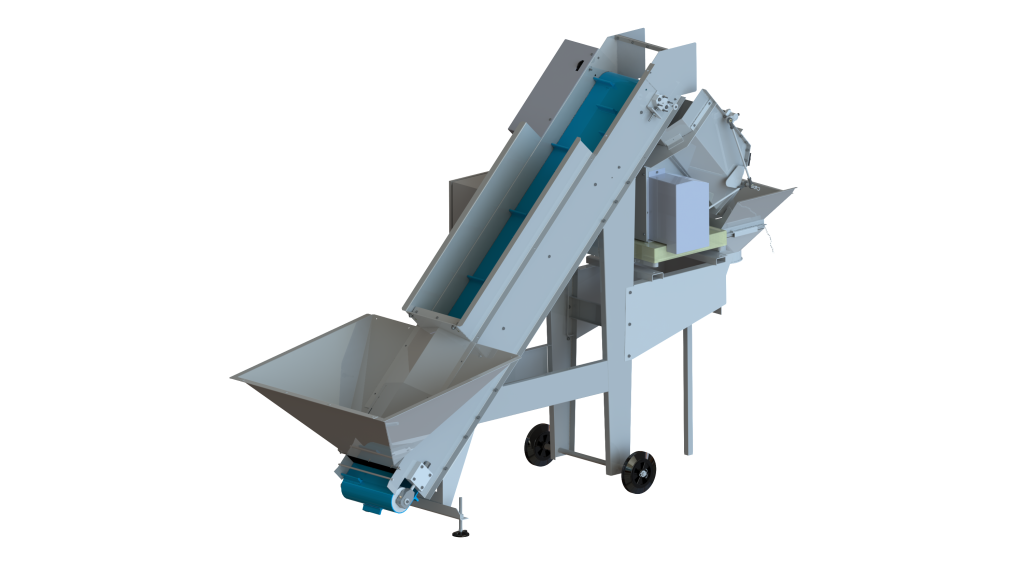

Ensacheuse Peseuse EP2000

EP2000-1 belt

This machine is designed to package shellfish into pouches or bags according to a specific predefined weight.

FEATURES :

  • This machine transfers shellfish into pouches/baskets/mesh bags according to a set weight.

OUTPUT :

  • Up to 10 x 5 kg/minute
  • Weighing accuracy: +/- 20 g (depending on the speed of the belt and the transition from high speed to low speed).

OPERATION :

  • A precise and powerful machine.
  • Electronic speed control with potentiometer.
  • A single cleated conveyor belt to transfer shellfish into bags or pouches according to a set weight.
  • The load is emptied and a new cycle begins when the hatch is opened by the infrared sensor.

MAINTENANCE :

  • The machine is robust and made entirely from stainless steel.
  • PVC cleated belt with stainless steel staples.

TECHNICAL FEATURES :

  • Power supply: 220 V, single phase
  • Speed control on the belt and the hatch opening
  • Power: 0.7 kW

SIZE :

  • Length: 2800 mm
  • Width: 1000 mm
  • Height: 2000 mm

EP1800

Category : Non classé

PDF
Ensacheuse Peseuse EP1800

EP1800

This machine is designed to package shellfish into pouches or bags according to a specific predefined weight.

FEATURES :

  • This machine transfers shellfish into pouches/baskets/mesh bags according to a set weight.

OUTPUT :

  • Weighing accuracy : +/- 20 g (depending on the speed of the belt and the transition from high speed to low speed).

OPERATION :

  • Straightforward operation.
  • Fed from a sorting belt
    (optional) into a hopper (square or triangular).
  • Weighing and bagging oysters or other shellfish.
    The oysters are raised on a cleated conveyor belt, equipped with an electronic speed control with potentiometer, and fall into a pouch or basket.
    The belt transitions from a high speed to a low speed and then stops when the pre-programmed value has been reached.

MAINTENANCE :

  • The machine is robust and made entirely from stainless steel.
  • PVC cleated belt with stainless steel staples.

TECHNICAL FEATURES :

  • Power supply: 220 V, single phase
  • Electronic speed control on the belt

SIZE :

  • Length: 2200 mm
  • Width: 850 mm
  • Height: 1500 mm

Two-way weighing/bagging machine

Category : Non classé

PDF
Ensacheuse Peseuse Double Sens

Two-way weighing/bagging machine

This machine is designed to package oysters, mussels or other shellfish

FEATURES :

  • The machine includes two weighing heads.
  • Various shellfish packaging methods.
  • High rate.

OUTPUT :

  • Weighing accuracy: +/- 20 g.

OPERATION :

  • Weighing and bagging oysters (or other shellfish).
  • Placed after a sorting belt.
  • The oysters are transported on a two-way belt.
  • The direction can be changed once the desired weight has been reached in order to fill the opposite pouches/baskets/bags.
  • The machine can be integrated with an automatic basket feeding and removal system consisting of a roller conveyor on each side of the filling areas.
  • This option makes it easier to manage both full and empty baskets.

MAINTENANCE :

  • The machine is made entirely from stainless steel.

TECHNICAL FEATURES :

  • Power supply: 220 V, single phase
  • Electronic speed control

SIZE :

  • Length: 1600 mm
  • Width: 650 mm
  • Height: 850 mm above the belt

Modular inclined conveyors or inclined conveyor belts

Category : Non classé

PDF

Modular inclined conveyors or inclined conveyor belts

Modular inclined conveyors or inclined conveyor belts can be used to feed any type of machine.

FEATURES :

  • A modular conveyor or conveyor belt to feed shellfish into any machine.

OUTPUT :

  • Variable according to the client’s needs and the machine that it feeds

OPERATION :

  • Equipped with a cleated conveyor belt or modular elements, the length of which are determined by the height of the machine it feeds.
  • Driven by a hollow-shaft geared motor and typically fitted with an electronic speed control.
  • The hopper is custom-made to suit the installation and the client’s needs (square or triangular with a variable volume to increase or decrease the storage capacity).

MAINTENANCE :

  • The machine is robust and made entirely from stainless steel.
  • The belts are connected by stainless steel staples.
  • The modular system allows for rapid replacements in the event of any wear.

TECHNICAL FEATURES :

  • Electric or hydraulic geared motor
  • Speed control
  • Adjustable feet

SIZE :

  • Length: up to 15 m (find out more)
  • Width: up to 3 m (find out more)
  • Other dimensions available on demand

Standard Circular Size Grader

Category : Non classé

PDF
calibreuse circulaire standard

Standard Circular Size Grader

This compact model lets you cut, wash and size white or green asparagus.
Options: Input tray, recycling unit, water baths instead of output trays

FEATURES :

  • Only one operator required.
  • Unparalleled cutting.
  • Double washing ramp: high and low.
  • 16 sprayers with ceramic nozzles.
  • Accurate and adjustable grading.
  • The asparagus is always measured at the same point.

OUTPUT :

  • With two operators (1 at input and + 1 at output): 100 to 150 kg/h, depending on the average size of the asparagus.

OPERATION :

  • The asparagus is deposited one by one into stainless steel cells.
  • It is then cut to the desired length: 20 to
    27 cm with a minimum size of 15 cm.
  • The asparagus is washed in the tunnel.
  • It is then graded into 3 adjustable diameters.
  • Finally, it is placed into trays by the stalk.
  • It can then be collected by the operator or transferred to water baths (optional).

MAINTENANCE :

  • The machine is made entirely from stainless steel.
  • Low maintenance: simply grease the bearings.
  • Clean water wash.
  • The saw blade should be changed according to wear.

TECHNICAL FEATURES :

  • Power supply: 220 V, single phase
  • Total electric power: 0.75 kW
  • Water inlet: 25 mm diameter
  • Water outlet: 100 mm diameter
  • Equipped with a speed control
  • Water consumption: 1.5 m3/h at 3 bars

SIZE :

  • Diameter: 1.50 m
  • Height: 1.30 m
  • Weight: 100 kg
  • Size: 1.50 m x 1.50 m on the ground
Compare with other circular size graders

Tapered roller mussel size grader

Category : Non classé

PDF
Calibreuse à moules à rouleaux coniques

Tapered roller mussel size grader

This device lets you grade mussels and other shellfish after the scrubbing machine.

FEATURES :

  • Vibration and stress-free grading system.
  • Removes waste and any mussels smaller than the desired size.

OUTPUT :

  • 1 to 2 tonnes/hour depending on the model.

OPERATION :

  • Precise and adjustable grading thanks to the tapered rollers.
  • Placed after a scrubbing machine.
  • The machine is driven by toothed belts.
  • Speed control
  • After grading, the mussels are moved onto an inspection belt towards a weighing machine.

MAINTENANCE :

  • Stainless steel frame and rollers.
  • As the mussels are moving in a positive direction, the roller always stay clean.

TECHNICAL FEATURES :

  • Power supply: 220 V, single phase
  • Power: 1.1 kW
  • Geared electric motor with electronic speed control
  • Driven by toothed belts

SIZE :

Two models available as standard:
15 or 19 rollers

  • Length: 1600 mm
  • Width: 1050 mm

Unique BG system

Category : Non classé

PDF
Brosseuse à moules

Unique SCRUBBING system 3 models : BG 3000/BG 3500/BG 4000

This secure system is designed for the start of a packaging line.

FEATURES :

  • Reproduces the circular manual movements of traditional washing.
  • Flawless cleaning, removing waste and parasites.
  • Gentle brushing for less breakage and stress.
  • Saves time and manpower.

OUTPUT :

1.5 to 7 tonnes/hour depending on the model.

  • BG3000: 1.5 to 3 tonnes/hour
  • BG3500: 2 to 4 tonnes/hour
  • BG4000: 3 to 7 tonnes/hour

OPERATION :

  • Placed after a separating machine
    (for an initial scrub) and before a tapered roller size grader.
  • A rod conveyor belt is used to transport the mussels under the brushes before they are moved onto the size grader.
  • Chute system to move waste into bins or waste disposal.
  • Options: electric system to
    lift the brushes.

MAINTENANCE :

  • The machine is robust and made entirely from stainless steel.
  • The brushes can by lifted for simple and effective daily maintenance.
  • Self-cleaning grid system.

TECHNICAL FEATURES :

  • Power supply:
    • 220/240 V, single phase/50 Hz
  • Power:

    • > BG3000: 1.75 kW
    > BG3500: 2 kW
    > BG4000: 2.60 kW

SIZE :

BG3000
L = 2500 mm/W = 1300 mm/
H = 2500 mm/3 brushes Ø 500 mm

BG3500:
L = 3100 mm/W = 1500 mm/
H = 2500 mm/3 brushes Ø 700 mm

BG4000 :
L= 3800 mm/W = 1500 mm/
H = 2500 mm/4 brushes Ø 700 mm

Single or double screw blade mussel washing machine

Category : Non classé

PDF
Laveuse à moules à pales simple ou double

Single or double screw blade mussel washing machine

This machine effectively removes small mussels and wastes.

FEATURES :

  • Eliminates 60 to 70% percent of waste.
  • Also available with a double screw for a higher rate.

OUTPUT :

  • Up to 2 tonnes/hour with a single screw.

OPERATION :

  • Endless screw with speed control.
  • Separates groups of mussels.
  • Waste is removed by the durable rubber blades pushing the mussels upwards over the thick perforated grid, which also acts as pre-sorting.
  • Placed between a separating machine and a scrubbing machine.

MAINTENANCE :

  • The machine is robust and made entirely from stainless steel.
  • Durable, detachable and interchangeable rubber blades.
  • Easy access for cleaning and maintenance (e.g. changing the blades).

TECHNICAL FEATURES :

  • Power supply: 220 V, single phase
  • Power: 1.1 kW
  • Electronic speed control

SIZE :

  • Length: 2400 mm
  • Width: 750 mm

CLA 800 SB

Category : Non classé

PDF
Coupeuse Laveuse CLA800 SB

Single-stop CLA 8000 sb

Our top-of-the-range cutting/washing machine can be fed by a sorting belt, an electronic sorting machine (VisioSelect) or a mechanical sorting machine (MecaSelect)

Options: Input tray, recycling unit

FEATURES :

  • Stainless steel mesh belt with more than 80% perforation.
  • Double washing ramp: high and low.
  • 24 sprayers with ceramic nozzles.
  • Washing tunnel length: 0.800 m

OUTPUT :

  • With 4 operators (2 at input and + 2 at output): 300 to 600 kg/h, depending on the average size of the asparagus and the sorting carried out.
  • Electronic speed control

OPERATION :

  • Fed by simply spreading the asparagus.
  • The vertical stop automatically aligns the asparagus tips.
  • The two wheels hold the asparagus without damaging it to ensure a clean cut.
  • Easy-to-adjust cutting length: up to 27 cm.

MAINTENANCE :

  • The machine is made entirely from stainless steel.
  • Low maintenance: simply grease the bearings.
  • Clean water wash.
  • The saw blade should be changed according to wear.

TECHNICAL FEATURES :

  • Power supply: 220 V, single phase
  • Total electric power: 1 kW
  • Water inlet: 25 mm diameter
  • Water outlet: 100 mm diameter
  • Water consumption: 3 m3/h at 4 bars

SIZE :

  • Length: 4.80 m (optional extended sorting area)
  • Width: 0.90 m
  • Height: 1.30 m
  • Weight: 180 kg
Compare with other cutting/washing machines

Cylindrical/conical mussel separating machine

Category : Non classé

PDF
Dégrappeur à moules cylindro-conique

Cylindrical-conical mussel separating machine

This machine allows you to separate mussels from the nets used for cultivation on pilings

FEATURES :

  • Separating mussels from their cultivation nets

  • Rotating central cone system (front/rear, automatic or manual)

OUTPUT :

  • Up to 7 tonnes/hour.

OPERATION :

  • Individual mussel separation with prewashing
  • Rotating central cone
  • Inner tank with grooved lining and fixed cones
  • Mussels collected in containers or modular inclined conveyors
  • Secure access platform for net removal
  • Placed after a container emptying machine and before a scrubbing machine (BG3000/3500/4000)

MAINTENANCE :

  • The machine is robust and made entirely from stainless steel
  • Cone driven by a hydraulic geared motor: very low maintenance

TECHNICAL FEATURES :

  • Power supply: 380 V, three phase
  • Hydraulic Unit Power: 5.5 kW
  • Hydraulic geared motor

SIZE :

  • Length: 1270 mm
  • Width: 1270 mm
  • Height: 2060 mm
« Previous Page — Next Page »

Gallery

Our Facebook

The company
Our Machines
Discover us
Our Facebook

© Besnard2019#Ndeye
